AP9605

Home-->Products-->Woodworking Machinery-->Laminating Machine-->AP9605

Product Description:

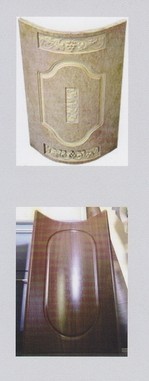

This Laminating Machine is mainly used for Vacuum Press Laminating the Curved Panels, Such as MDF, HDF, Plywood, Melamine Board, and other Board Sheets.

Technical Data of Laminating Machine AP9065
Workpiece Dimensions (mm)	970x640x18 (6 layers)
Overall Dimensions (LxWxH)(mm)	1500x1030x1300
Working air pressure (kg/m²)	6
Workpiece inner Radius (mm)	400
Work Cycle (minutes)	APPRX. 25 min
Heating Temperature	120 ⁰C
MAX. Vacuum Pressure	-0.92KPa
Vacuum Press capacity	40 m³/h
Noise Level	60 dB
Heating Power	7.2 KW
Vacuum Pump Power	1.5KW
Total Power Consumption	8.7KW
Weight	390kg

Enquire
